Specification

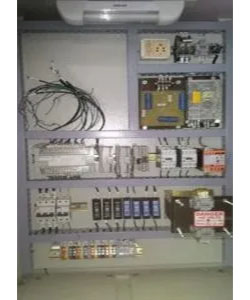

Application: Control the lifting system in the Domestic & Industrial sectors.

AC Rating Volts :  0 – 500V

AC Rating Amps: 100 – 400A

AC Rating Frequency:  50Hz

Insulation Voltage:  690V

Temp. Rise: Up to 35C Rise over 50C ambient.

Degree of Protection : IP 52, 54, 55, 65

Power Bus. Bar: Al. or Cu. Busbar

Over Current Protection: Properly

Panel Cote:7 tank Powder Coated Paint and as per Client’s requirement.

Panel Mount:  Floor / Ground Mounted, Wall Mounted, Mounted on Angle Frame.

Current Monitoring: Possible

Phase Monitoring : Possible

Configuration : Based on customer’s requirement.

Type test Performed : Short Circuit with Stand temp. rise with stand, Degree of Protection.

Product Warranty : At least 18 Month.
