ALUMINIUM REDUCER TERMINALS

ALUMINIUM REDUCER TERMINALS

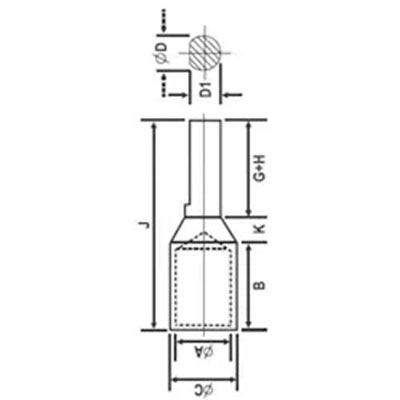

MM2 øA øC øD D-1 B K G+H J SONA CAT NO.
2.5 2.0 5.5 4.5 4.0 7 4 10 21 SAWP-17
2.6 3.8 3.3 4 10 SAWP-77
4.0 2.9 5.5 4.5 4.0 7 4 10 21 SAWP-157
3.8 3.3 4 10 SAWP-167
6.0 3.5 5.5 4.5 4.0 7 4 10 21 SAWP-177
3.8 3.3 4 10 SAWP-187
10 3.8 7.4 4.5 4.0 9 4 10 23 SAWP-197
3.8 7.4 3.8 3.3 9 4 10 23 SAWP-207
4.4 7.4 4.5 4.0 9 4 10 23 SAWP-217
4.4 7.4 3.8 3.3 9 4 10 23 SAWP-227
16 5.4 8.3 6.0 5.5 13 5 15 33 SAWP-237
6.0 5.5 13 5 20 38 SAWP-247
3.8 3.3 13 5 13 31 SAWP-27
25 7.0 10.0 6.0 5.5 16 5 15 36 SAWP-257
7.5 6.5 16 5 20 41 SAWP-37
35 8.0 10.8 7.5 6.5 18 5 20 43 SAWP-47
50 9.3 13.0 7.5 6.5 22 5 20 47 SAWP-267
10.4 14.0 14 13 22 7 24 53 SAWP-57
70 11.6 16.0 7.5 6.5 26 5 20 51 SAWP-277
11.5 10.5 5 25 56 SAWP-67
11.5 10.5 5 32 63 SAWP-287
95 12.9 17.1 11.5 10.5 28 6 25 59 SAWP-297
15.6 14.0 6 27 61 SAWP-87
7.5 6.5 6 22 56 SAWP-317
12.8 11.8 6 32 66 SAWP-327
120 14.8 19.6 11.5 10.5 32 6 25 63 SAWP-337
7.5 6.5 6 22 60 SAWP-347
11.5 1.5 6 32 70 SAWP-357
15.6 14 6 32 70 SAWP-367
150 16.1 21.2 15.6 14 34 6 32 72 SAWP-107
11.5 10.5 6 32 SAWP-377
185 18.0 23.7 15.6 14 36 6 32 74 SAWP-307
11.5 10.5 6 32 SAWP-387
225 20.6 27.0 15.6 14 40 8 32 80 SAWP-397
21 18 8 42 90 SAWP-467
16 15 8 42 90 SAWP-427
240 22.0 28.0 16 15 44 8 42 94 SAWP-447
15.6 14 8 32 84 SAWP-437
300 24.0 31.0 16 15 47 8 42 97 SAWP-457
15.6 14 8 32 87 SAWP-477



MATERIAL-ELECTROLYTIC ALUMINIUM IS 5082

 Tolerance = ± 5%
